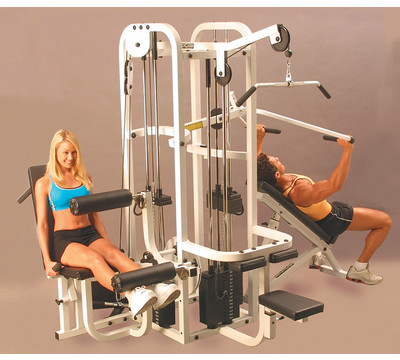

Maxicam 11 Station Z-Max Jungle Gym

This Maxicam 11 Station Z-Max Jungle Gym is an affordable, versatile machine specifically designed for health clubs, hotels, resorts, corporate fitness centers, condominiums, police or fire department facilities, and other applications where limited space is an important consideration. It utilizes biomechanically precise variable-resistance cams in the adjustable seated leg extension/lying leg curl stations, and features a unique 3-in-1 multipress station. All seats and benches are comfortably padded with high-density polyfoam and upholstered with top-grade vinyl fabric. The lat pulldown station is equipped with a hold-down pad for secure, anatomically correct body positioning. Instruction/use illustration placards are provided for each station.

This 11 Station Z-Max Jungle Gym features rugged 2 x 2 inch heavy gauge steel tubing frame, 4000 Pounds test, 3/16 inch mil-spec nylon-coated aircraft cable that is of sleek black. This has 6 inch diameter, 30 degrees deep grove in. fiberglass-reinforced nylon pulley wheels to ensure ideal cable support. Friction-free precision ball bearings provide years worth of worry-free whisper smooth operation. It also features special closed-cell foam handle grips. In addition to being extremely comfortable, they are virtually wear-proof. It has 3 weight stacks, one stack is 200 Pounds and other two have 150 Pounds. Choose from a variety of frame finishes and upholstery colors. … Read more

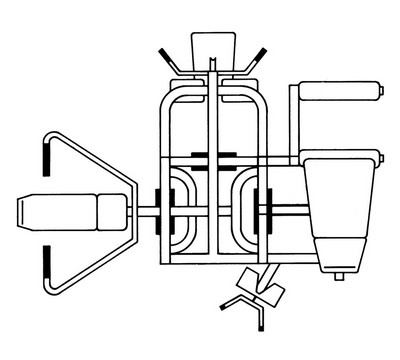

• Footprint: 106.00 in L x 90.00 in W
• Grade: Commercial
• Resistance Type: Selectorized Weight Stack
• Weight Stacks: (1) 200 lbs, (2) 150 lbs
• User Capacity: 3
• Included Stations: Leg Extension, Lying Leg Curl stations, Pullyes, Cables
• Product Shown: in White finish
• Unfolded Size: 106.00 x 90.00 x 83.00 in

Product Overview & Specs

This Maxicam 11 Station Z-Max Jungle Gym is an affordable, versatile machine specifically designed for health clubs, hotels, resorts, corporate fitness centers, condominiums, police or fire department facilities, and other applications where limited space is an important consideration. It utilizes biomechanically precise variable-resistance cams in the adjustable seated leg extension/lying leg curl stations, and features a unique 3-in-1 multipress station. All seats and benches are comfortably padded with high-density polyfoam and upholstered with top-grade vinyl fabric. The lat pulldown station is equipped with a hold-down pad for secure, anatomically correct body positioning. Instruction/use illustration placards are provided for each station.

This 11 Station Z-Max Jungle Gym features rugged 2 x 2 inch heavy gauge steel tubing frame, 4000 Pounds test, 3/16 inch mil-spec nylon-coated aircraft cable that is of sleek black. This has 6 inch diameter, 30 degrees deep grove in. fiberglass-reinforced nylon pulley wheels to ensure ideal cable support. Friction-free precision ball bearings provide years worth of worry-free whisper smooth operation. It also features special closed-cell foam handle grips. In addition to being extremely comfortable, they are virtually wear-proof. It has 3 weight stacks, one stack is 200 Pounds and other two have 150 Pounds. Choose from a variety of frame finishes and upholstery colors.

• Rugged 2 in. x 2 in. heavy gauge steel tubing frame
• Variable resistance cams precision-machined and biomechanically engineered to maximize strength and flexibility
• Top grade vinyl fabric upholstery

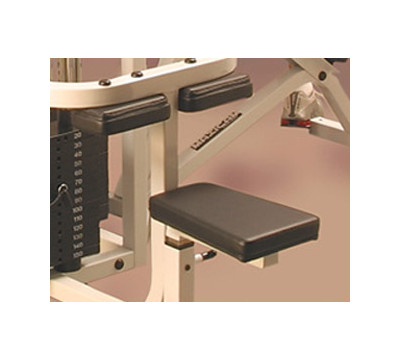

• Seats, pads, and benches are fabricated from top-grade plywood and padded with high-density polyfoam
• Spring-loaded pop pins, set and secure a wide range of adjustable height and angle settings
• 4,000 lbs Tested, 3/16 in. mil-spec nylon-coated aircraft cable

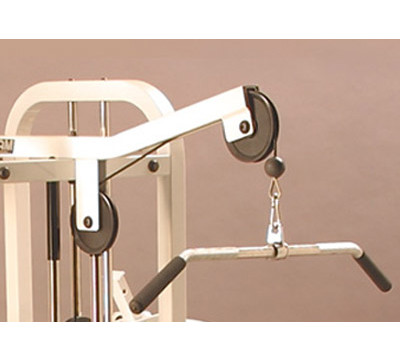

• 6 in. Diameter, 30 Deg. in.deep groove in. fiberglas-reinforced nylon pulleys with sealed friction-free precision ball bearings
• Machined steel weight stacks
• Guide rods provides extremely smooth action
• Self-locking, twist-type pins
• Special closed-cell foam handle grips
• Includes instruction/information placards
• 1 Stack 200 lbs and other 2 have 150 lbs
• Available in a variety of frame finishes and upholstery colors

About Maxicam

Authorized Maxicam Retailer See all Maxicam Home Gyms

Located in Southern California, Muscle Dynamics is a leading manufacturer of commercial fitness equipment. With over 31 years of experience, and 130 original products available, Muscle Dynamics distributes its products through a worldwide dealer network, trained to install and service all products. Their Maxicam products are featured in commercial, institutional, corporate, and private fitness facilities throughout the world.
